Marco Lemmens

Project Description

In this course you’re going to work with a multidisciplinary group of fellow students, to create an app for Apple’s iOS platform. Besides the group project, you will create an individual research component to support the project. To maximize the result in the limited set of time available, a number of deliverables have been defined:

• Group rules and values
• Concept document
• Feature list
• Background research document
• Task list (to be adjusted every week
• Paper prototype recording
• System Architecture model
• Intermediate demo
• Promotion material
• Final result: Demo + promotion material + product
• Individual reflection + portfolio

Mutual agreements and cooperation

To keep things clear and simple, we use a Trello group. This is necessary for this kind of big projects.
Because of the many different aspects of projects like this, everyone needs to have a key function within the team, while at the same time knowing what the others are working on. With methods like "Scrum", it is easy to accomplish

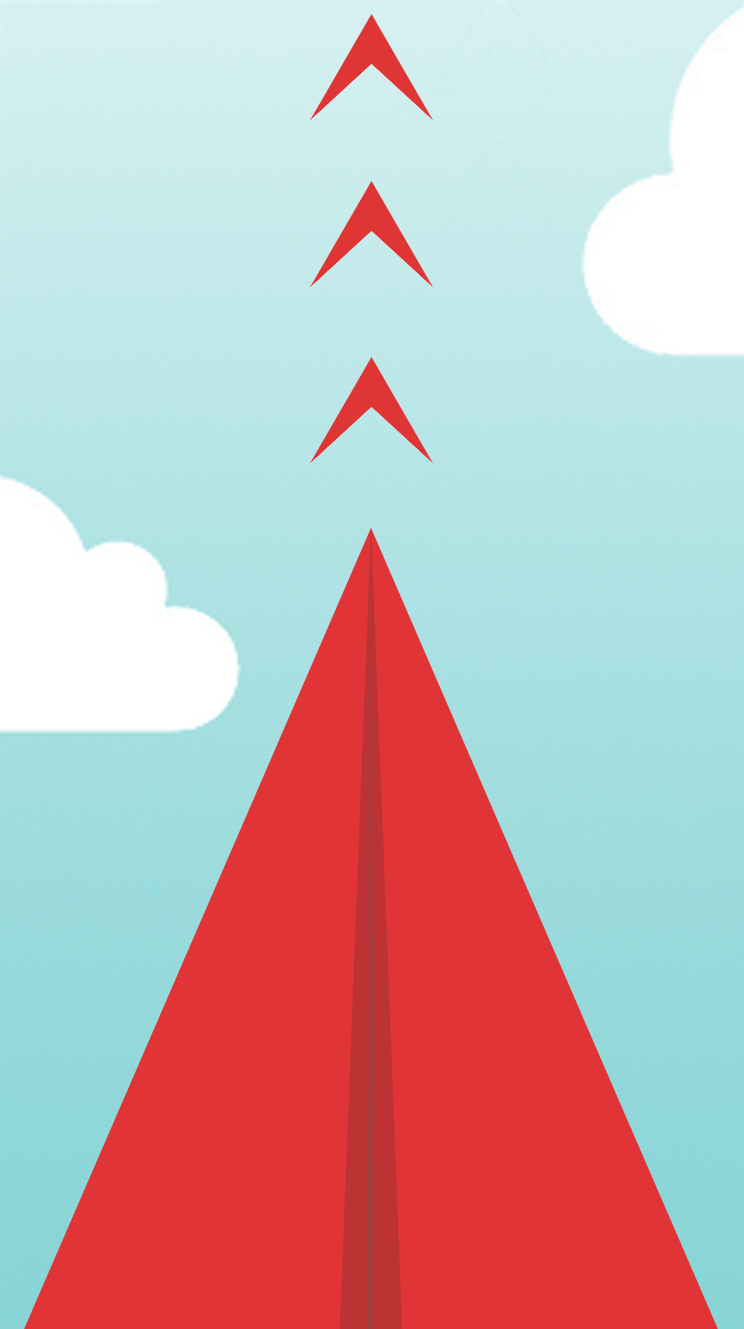

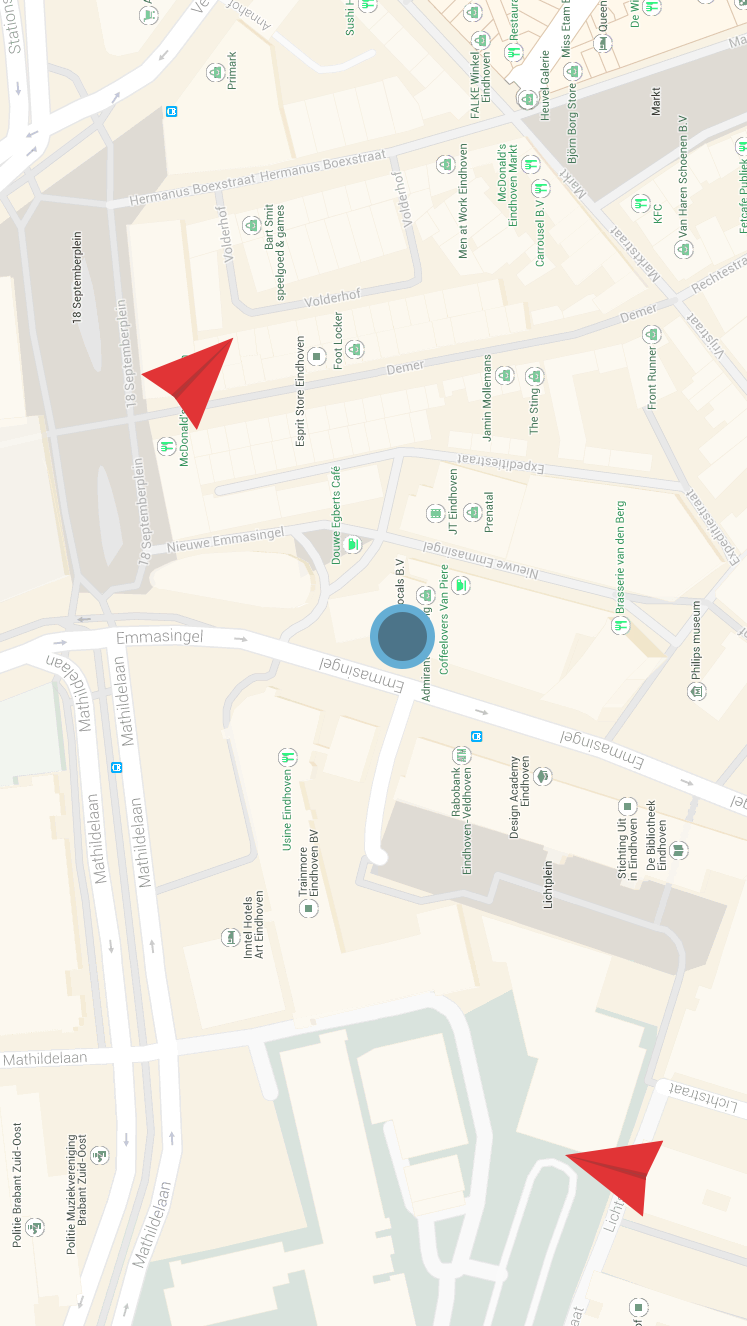

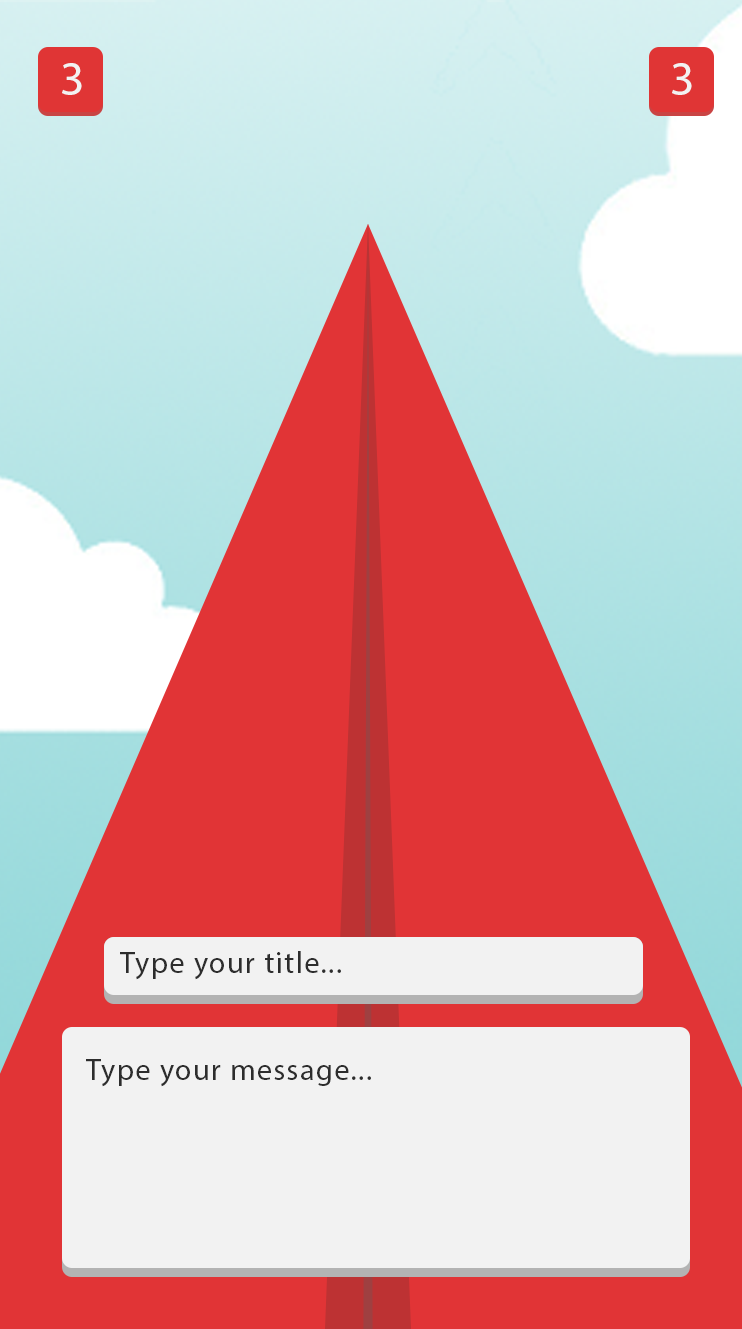

GUI elements

Database model

Classes diagram


...
        override func viewDidLoad() {
        super.viewDidLoad()
        print(planeImage.center.y)
        initY = planeImage.center.y
        force1.alpha = 0
        force2.alpha = 0
        force3.alpha = 0
        force4.alpha = 0
        force5.alpha = 0
        force6.alpha = 0
        force7.alpha = 0
        planeImage.userInteractionEnabled = true
        let singleTap: UITapGestureRecognizer = UITapGestureRecognizer(target: self, action: "singleTapping:")
        singleTap.numberOfTapsRequired = 1
        planeImage.addGestureRecognizer(singleTap)
        self.locationManager.delegate = self
        self.locationManager.desiredAccuracy = kCLLocationAccuracyBest
        self.locationManager.requestWhenInUseAuthorization()
        self.locationManager.startUpdatingLocation()
        lm = CLLocationManager()
        lm.delegate = self
        lm.startUpdatingHeading()
        let camera = GMSCameraPosition.cameraWithLatitude(self.currentLat,
        longitude: self.currentLon, zoom: 7, bearing: 30, viewingAngle: 0)
        mapView.camera = camera
        mapView.mapType = kGMSTypeNormal
        mapView.myLocationEnabled = true
    }
...




...
    func locationManager(manager: CLLocationManager, didUpdateToLocation newLocation: CLLocation, fromLocation oldLocation: CLLocation) {
        CLGeocoder().reverseGeocodeLocation(manager.location!, completionHandler: { (placemarks, error) ->
            Void in
            if error != nil{
                print("Error: " + (error!.localizedDescription))
                return
            }
            if placemarks!.count > 0{
                let pm = placemarks![0]
                self.currentLat = Double((pm.location?.coordinate.latitude)!)
                self.currentLon = Double((pm.location?.coordinate.longitude)!)
                if self.firstLoop == true{
                    self.updateMapCenter()
                    self.firstLoop = false
                }
            }
        })
    }

    func updateMapCenter(){
        let location = CLLocationCoordinate2D(latitude: self.currentLat, longitude: self.currentLon)
        mapView.animateToLocation(location)
    }

    func showAllMarkers(){
        let url = "http://athena.fhict.nl/users/i278062/tomar/json.php"
        Alamofire.request(.GET, url).responseJSON { response in
            switch response.result {
            case .Success(let data):
                let json = JSON(data)
                for index in 0...json["people"].count - 1 {
                    let title = String(json["people"][index]["locationName"])
                    let personName = String(json["people"][index]["name"])
                    let personLat = String(json["people"][index]["lat"])
                    let personLon = String(json["people"][index]["lon"])
                    let degree = String(json["people"][index]["degree"])
                    let vliegtuigID = String(json["people"][index]["id"])
                    let iconRotation: CLLocationDegrees = Double(degree)!
                    let marker = GMSMarker()
                    marker.position = CLLocationCoordinate2DMake(Double(personLat)!, Double(personLon)!)
                    marker.title = title
                    marker.snippet = "van: " + personName
                    marker.icon = UIImage(named: "markerIcon")
                    marker.rotation = iconRotation
                    marker.flat = true
                    marker.userData = vliegtuigID
                    marker.map = self.mapView
                }
            case .Failure(let error):
                print("Request failed with error: \(error)")
            }
        }
    }
...
